Find out more about Stop Logs by reading our Product Blog Articles.
All products can be manufactured to custom sizes.
Pricing current as of: March 5th, 2026

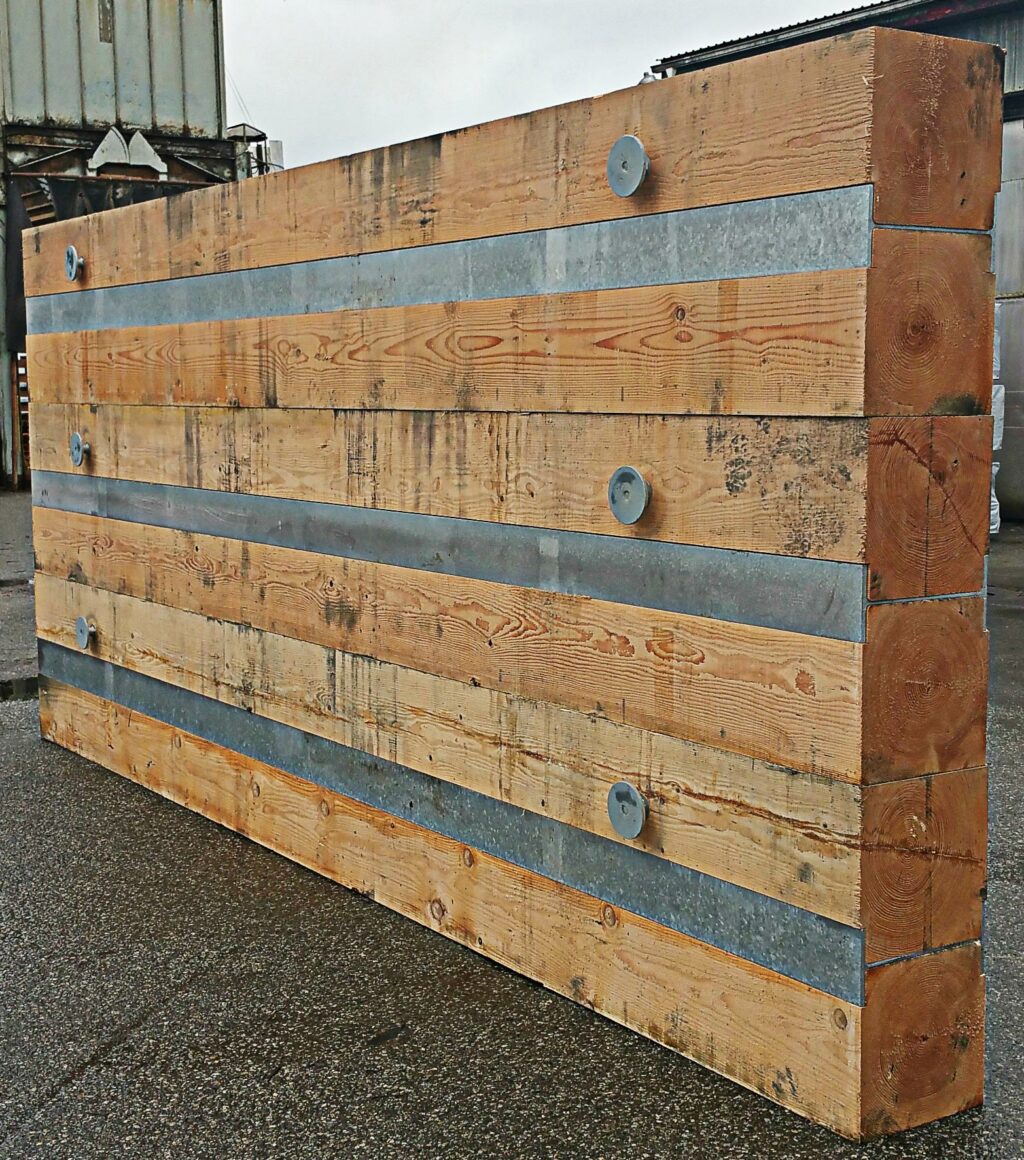

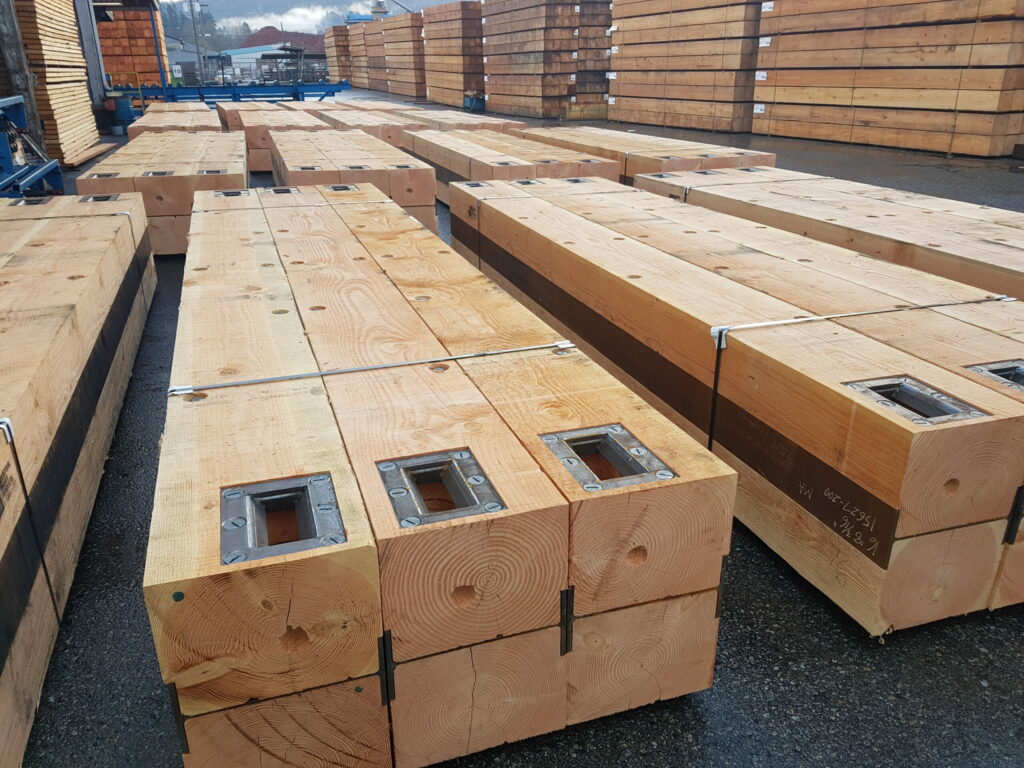

24″ x 16″ x 16′ Double Stop Log H Beam Harpoon Pick-up
24" x 16" x 16' Double Stop Log H Beam Harpoon Pick-up
$4,700.00PerItem
$4,700.00Per
Item
Item
- Size 24" × 16" × 16Feet
Douglas Fir Select Structural complete with steel H Beam reinforcement including harpoon receivers each end for pick up
12″ x 24″ x 22′ Double Stop Log H Beam Lug Pick-up
12" x 24" x 22' Double Stop Log H Beam Lug Pick-up
$3,900.00PerItem
$3,900.00Per
Item
Item
- Size 12" × 24" × 22Feet
Douglas Fir Select Structural complete with steel H Beam reinforcement including lifting lug pick-up ears

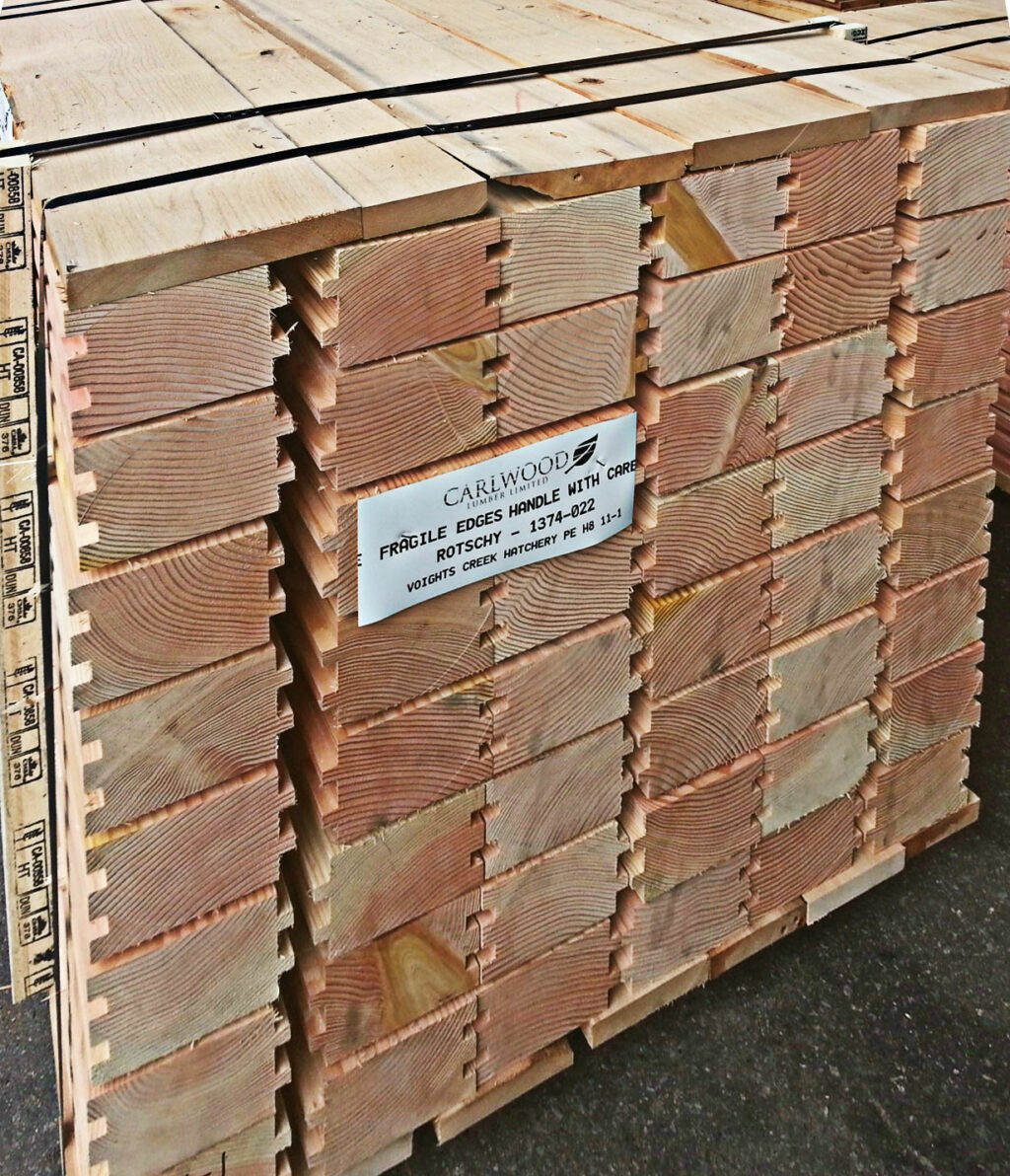

2.5″ x 6″ x 5′ Fish Hatchery Style Stop Log
2.5" x 6" x 5' Fish Hatchery Style Stop Log
$125.00PerItem
$125.00Per
Item
Item
- Size 2.5" × 6" × 5Feet
Douglas Fir structural
Tongue and groove loose
Fit with steel pin pick up

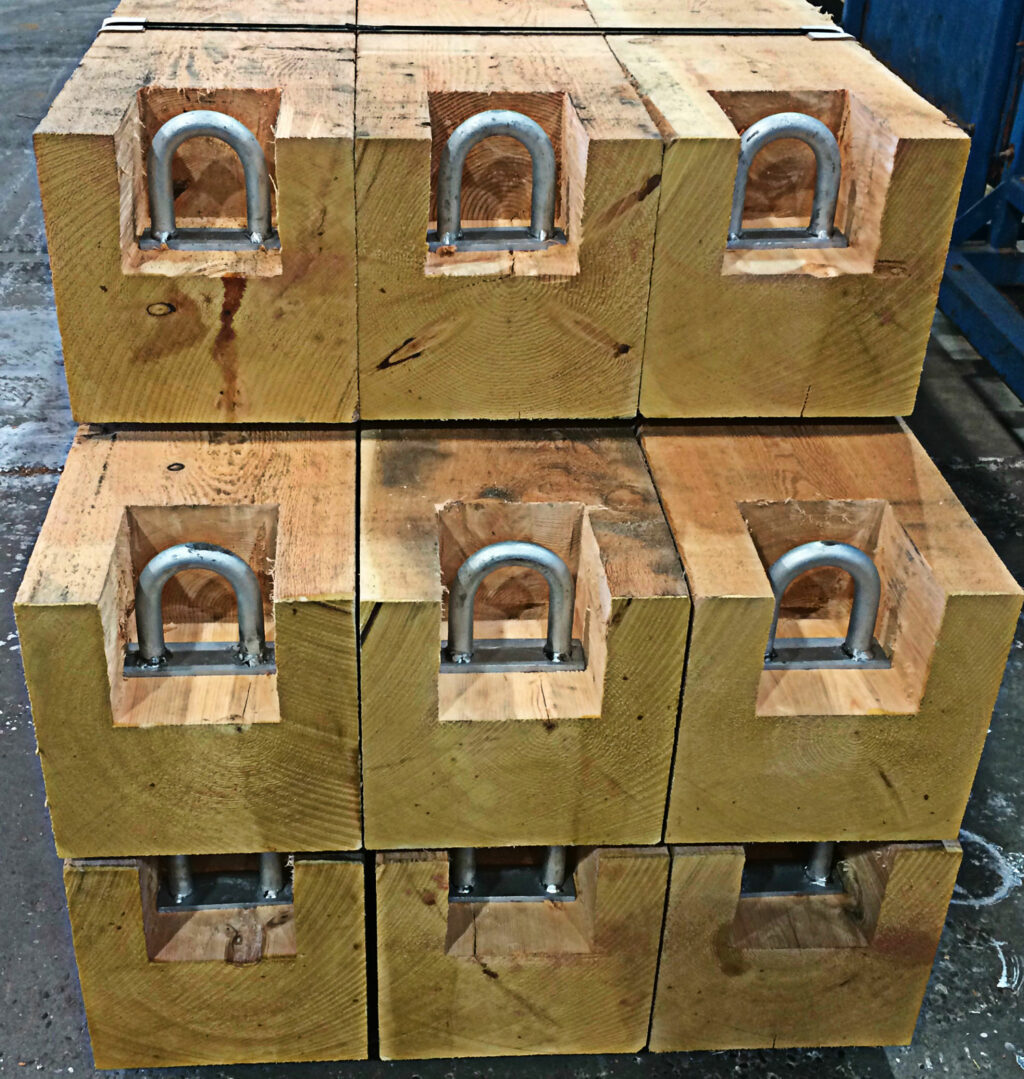

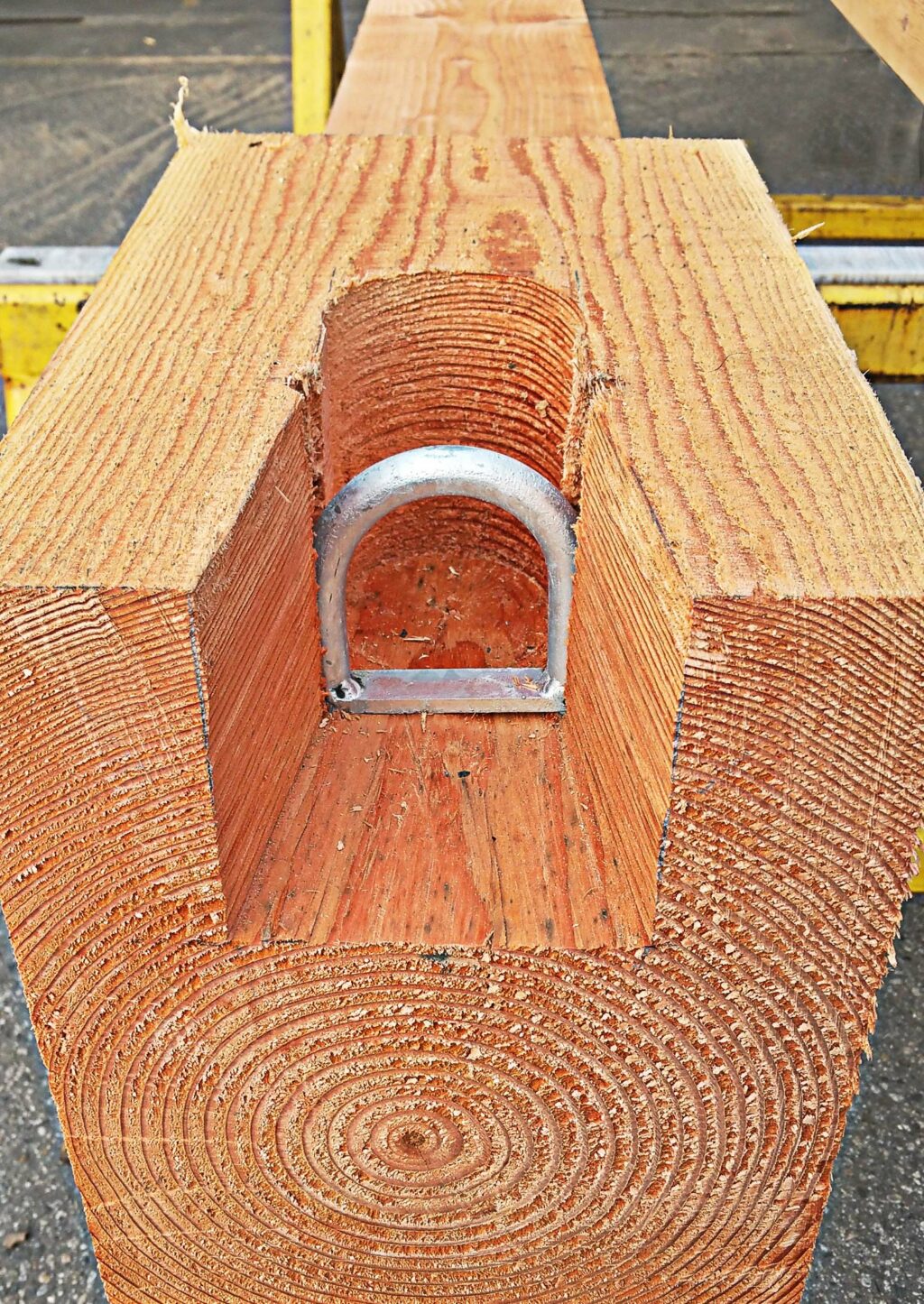

12″ x 12″ x 22′ Single Stop Log U-Bolt
12" x 12" x 22' Single Stop Log U-Bolt
$1,600.00PerItem
$1,600.00Per
Item
Item
- Size 12" × 12" × 22Feet
U-Bolt pick up both ends, Douglas Fir Select Structural

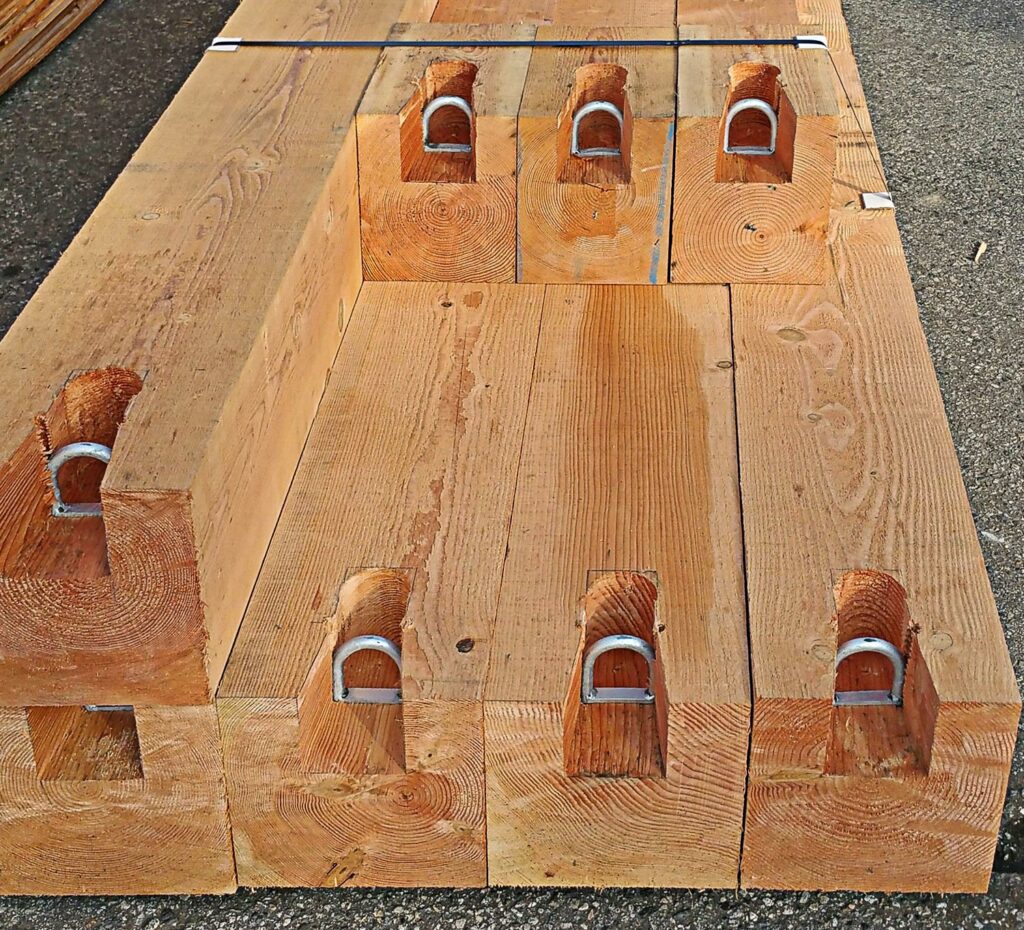

10″ x 12″ x 16′ Single Stop Log U-Bolt
10" x 12" x 16' Single Stop Log U-Bolt
$1,400.00PerItem
$1,400.00Per
Item
Item
- Size 10" × 12" × 16Feet
U-Bolt pick up both ends
Douglas Fir structural
10″ x 12″ x 13′ Single Stop Log U-Bolt
10" x 12" x 13' Single Stop Log U-Bolt
$1,150.00PerItem
$1,150.00Per
Item
Item
- Size 10" × 12" × 13Feet
U-Bolt pick up both ends, Douglas Fir Select Structural
Prices shown are for indication purpose
Product Features:
- Stop Logs can be separated by a rubber membrane to stop water leaks. We can put a "saw slot" along the timbers to accommodate the membrane
- Stop Log panels - timbers should have full width hardwood splines to add strength and reduce leakage
- Wood is untreated (with no preservative) because they are located in freshwater streams and fish bearing creeks and lakes. Stop Logs should never be Chemically treated (that went out of fashion in the 90's)
- Price as indicated are just examples, every Stop Log or Stop Log panel are unique
Optional Product Features:
- Harpoon "receivers" can be added which are designed to "lock in" the individual log
- U-Bolt lifters or through-bolt "ears" (lifting lugs) for stop-log-lifter designed equipment
- Steel pins for lifting small Stop Logs with hand lifter (supplied)
- Stainless handles can be added for smaller logs
- Ballast Plates can be added to over-come floatation issues. Floatation depends by project, typically a panel is "above the water line" and may not require ballast.
